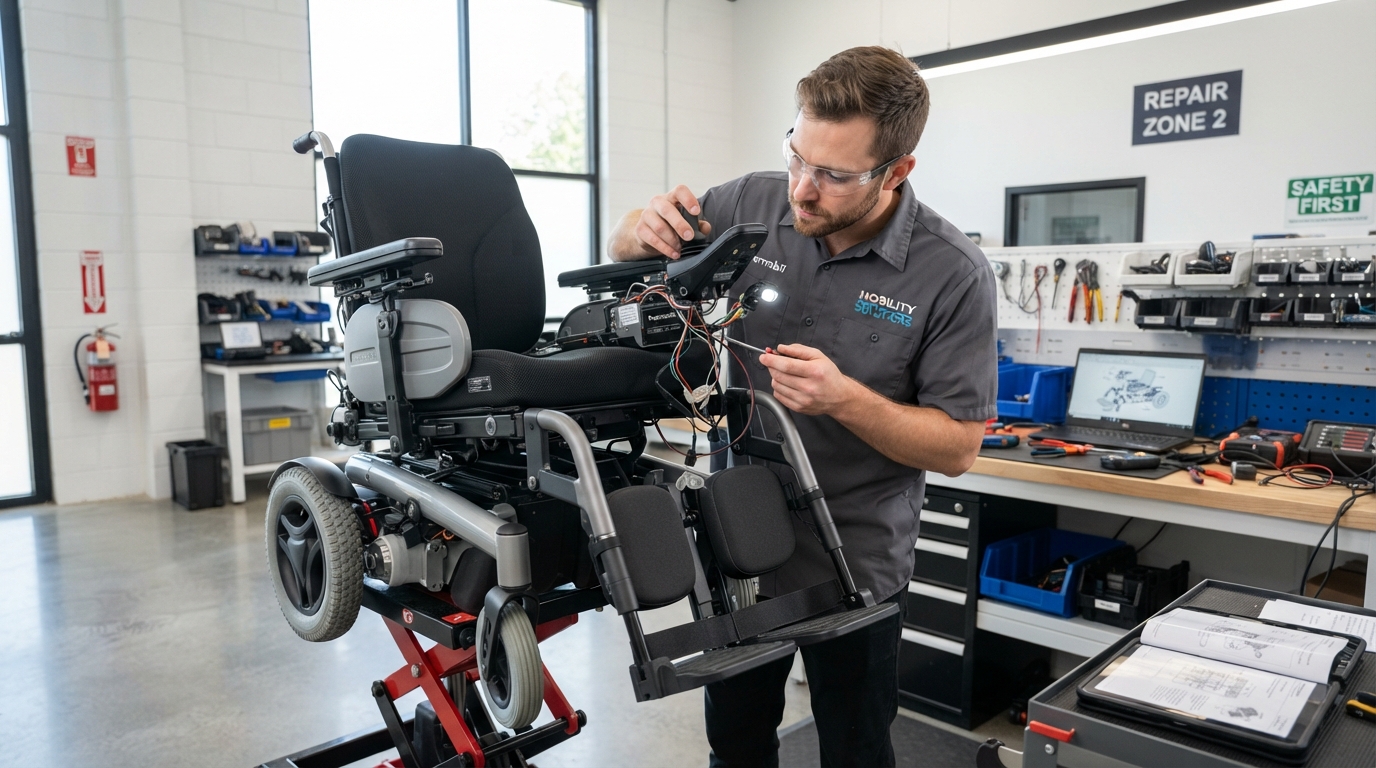

Electric Wheelchair Repair in Winter Garden, FL

A power wheelchair is an essential device for independence and mobility. When it stops working — whether the joystick will not respond, the batteries will not hold a charge, or a motor fails — you need a repair shop that understands the unique electrical and mechanical systems that power these devices. Scooter Repair in Winter Garden, FL, provides professional power wheelchair diagnostics, repair, and maintenance with respect for your independence and safety.

Power wheelchairs are more complex than mobility scooters. They use joystick controllers that communicate digitally with the motor controllers, dual drive motors (left and right) for differential steering, electromagnetic brakes that engage when the chair stops, and sophisticated power modules that manage battery distribution. Our technicians understand these systems and have the diagnostic equipment to identify the root cause of failures — from joystick communication errors to motor gearbox noise to battery degradation.

We repair power wheelchairs from brands including Pride Mobility, Quantum, Quickie, Permobil, Invacare, Golden Technologies, and many others. We also service mobility scooters and provide lithium battery service. Our shop at 12935 W Colonial Dr, Winter Garden, FL 34787 is open Monday through Friday, 9:00 AM to 5:00 PM. Call ahead at (786) 939-7414 so we can confirm parts availability before your visit. We serve riders across the Greater Orlando area.

The joystick controller is the brain of a power wheelchair. It translates the user's joystick movements into digital signals that the motor controllers use to drive the left and right motors at different speeds — enabling forward, reverse, and turning. When the joystick is unresponsive, displays error codes, or produces erratic movement, the problem could be in the joystick gimbal, the control module, the communication harness, or the motor controllers themselves.

Our joystick diagnostic process includes: testing the joystick gimbal for smooth X-Y axis response, checking the speed dial and mode buttons, verifying communication between the joystick and motor controllers via the harness, and reading any flash codes or error codes displayed on the joystick screen. Different manufacturers use different error code systems — Pride/Quantum uses flash codes, Permobil uses a diagnostic display, Invacare uses LED flash patterns. We reference the appropriate system for your wheelchair brand.

Power wheelchair motors are typically dual drive — one for the left wheel and one for the right. If one motor fails or runs slower, the wheelchair will pull to one side or turn in circles. We test each motor independently, evaluate gearbox condition (noise, grinding, or excessive friction), and check the electromagnetic brakes that engage when the joystick is released. Motor replacement requires matching the exact motor model, gear ratio, and brake type for your specific wheelchair.

Most power wheelchairs use two 12V deep-cycle SLA (sealed lead acid) batteries connected in series to produce a 24V system. These batteries typically last 12 to 18 months with regular use before needing replacement. Signs of battery degradation include reduced range, slow operation, the wheelchair stopping on inclines, and the battery gauge dropping quickly. Some newer power chairs use lithium-ion battery packs, which offer longer life and lighter weight but require different diagnostic and replacement procedures.

Our battery service includes: individual load testing of each battery to identify weak or failed cells, measuring resting voltage, checking for cell imbalance, verifying charger output voltage and amperage, and inspecting the charging port for corrosion or damage. When replacement is needed, we install compatible deep-cycle SLA batteries matched to your wheelchair's specifications. We also evaluate lithium battery upgrade options where appropriate.

Central Florida's heat accelerates SLA battery degradation — batteries stored or used in hot environments wear out faster than those in cooler climates. We recommend having your power wheelchair batteries load-tested annually to catch degradation before it leaves you stranded.
